Quality COFDM Video Transmitter & Mobile Video Communication factory
4 Years
| Ask Lasest Price | |
| Brand Name : | KimpoK |
| Model Number : | FOX-MN5A |
| Certification : | CE |
| Price : | USD82/Set |
| Payment Terms : | T/T, PayPal, Alipay |
| Supply Ability : | 200 Sets |
| Delivery Time : | 3-5days |

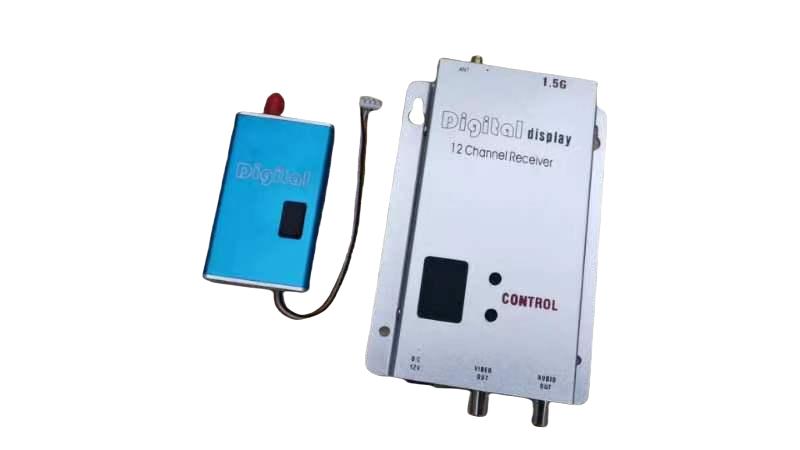

Hot sale 1.5Ghz 5W Mini FPV Video Transmitter and Receiver 5W Wireless AV Sender for Drones
Description:
This new wireless video transmission device uses frequency-modulation mode and a new frequency, avoiding the more commonly used 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission standard frequency in the same range, and is designed to avoid interference with existing widely used wireless communication standards, which may be more suitable for use in complex environments. The receiver sensitivity of -85dBm means that the device is able to receive very weak signals, which is essential for maintaining the continuity and stability of communication in complex environments. In addition, the device uses a ground-based high-gain antenna, which can transmit 1 to 2km in open urban areas, and about 20km in air-to-ground LOS (Line of Sight), which shows its flexibility and strong transmission capability in different environments.
These characteristics enable it to provide clear and stable image transmission in both urban open areas and air-to-ground LOS environments, meeting the demand for wireless video transmission equipment in different environments.
VTX Specification:
| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 300Mhz~1500Mhz (optional) |
| Channels | 12 channels |
| Frequency band (choose one series) | 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Transmit Power | 5 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 82g |
| Dimensions | 73*41*14mm (without antenna) |
|
|
