| Brand Name : | KimpoK |
| Model Number : | KP-12VTX5W |
| Certification : | CE |
| Price : | USD83/Piece |
| Payment Terms : | T/T, PayPal, Alipay |
| Supply Ability : | 200Pieces |
| Delivery Time : | 3-5days |
1.2Ghz 5W VTX 60km FPV Wireless Video Transmitter for Drone Long Range Transmission
Description:
KP-12VTX5W is a fire-new wireless video transmission equipment, which adopts FM modulation mode and brand-new frequency, with -85dBm high receiving sensitivity, it works with long distance and it is more befitting for use in complex environments, the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 5~10km in the open area of the city, and about 40km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

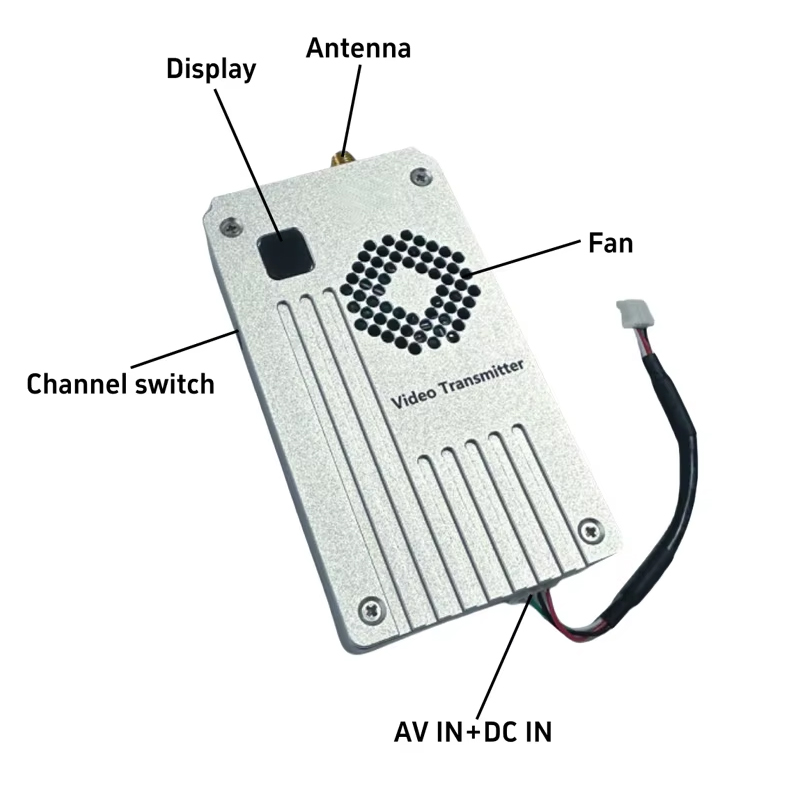

The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
KP-12VTX5W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (data and encryption are customizable).
VTX Specification:
| Model number: | KP-12VTX5W |
| Voltage | DC 12V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 1.2Ghz |
| Frequency band | 1020 ~ 1160Mhz / 1080 ~ 1360Mhz /1180 ~ 1320Mhz |
| Channels | 8 channels |
| Transmit Power | 5 watt (full power) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
|
|
