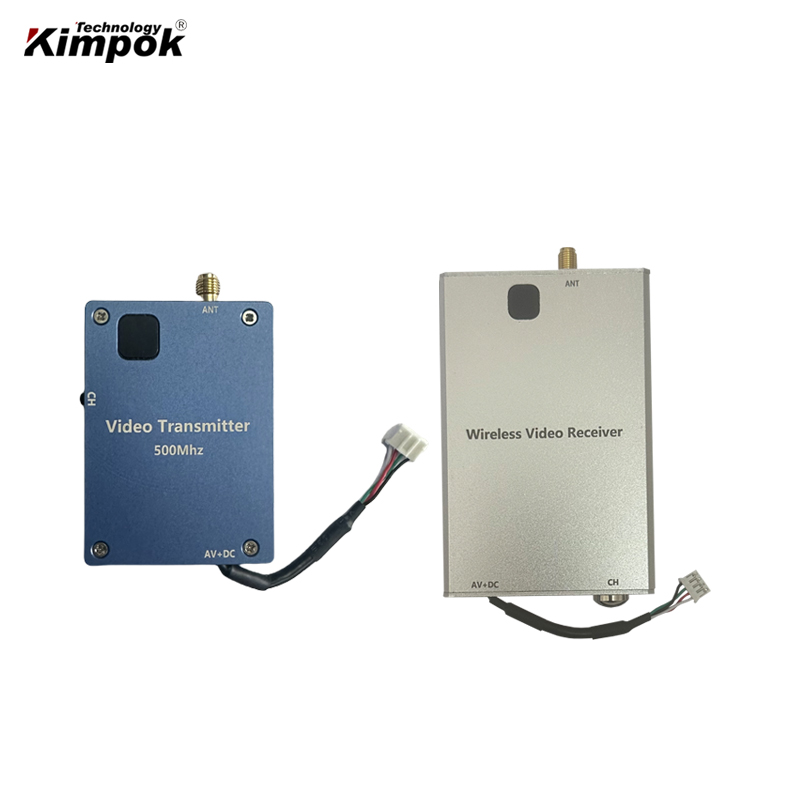

KP-500 TX 2W A New Wireless Video Transmitter for Clear and Stable Image Transmission

300~900Mhz 2W Wireless AV Transmitter and Receiver

Description:

KP-500TX2W is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, avoiding the same frequency interference, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 1~2km in the open area of the city, and about 20km in the air-to-ground LOS (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment). The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work. The signal input adopts a universal AV interface, which can be easily compatible with all conventional AV interfaces such as cameras, VCDs, DVDs, etc. KP-500TX2W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (customizable if data needs to be transmitted).

VTX Specification:

VRX Specification:

Antenna must be connected before connect to power, otherwise it will be easy to burned-out!

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
