| Brand Name : | Kimpok Technology / OEM |
| Model Number : | KP-500TX5W |
| Certification : | CE/ROHS/FCC/SGS |
| Price : | negotiation |
| Payment Terms : | T/T, PayPal or western Union |
| Supply Ability : | 3,000pcs per month |
| Delivery Time : | 3-7 days |
The Analog Video Transmitter is perfect for those who prefer the traditional analog video drone FPV experience. Its audio output of 1 Vp-p(FM) ensures that you can enjoy clear sound during your flights, adding to the overall immersion of the experience.
The temperature range of the Analog Video Transmitter is -10℃ ~ +50℃, making it suitable for use in a variety of weather conditions. Whether you're flying in hot or cold temperatures, you can rely on this transmitter to deliver the performance you need to get the most out of your FPV drone.
The Analog Video Transmitter is compatible with a wide range of FPV racing drones, making it a versatile choice for anyone looking to enhance their flying experience. Whether you're a seasoned pilot or just starting out, this transmitter is sure to deliver the performance you need to take your flights to the next level.
VTX Specification:
| Model number: | KP-500TX5W |
| Voltage | DC 12V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) (customization) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) (customization) |
| Transmit Power | 5 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 60g |

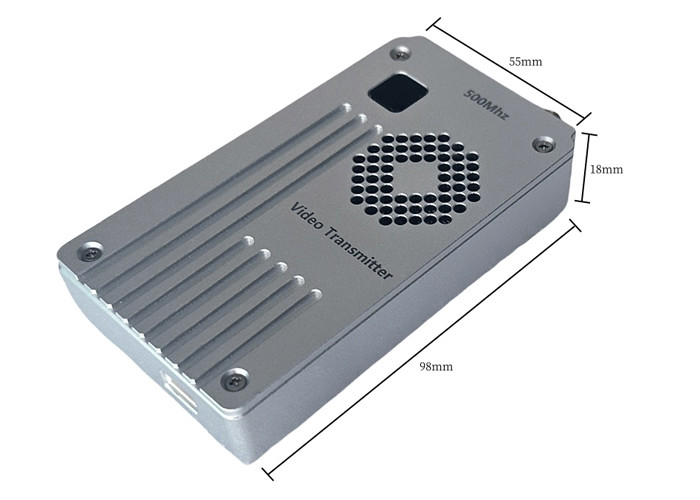

| Dimensions | 98*55*18mm (without antenna) |
VRX Specification:
| Model number: | KP-RX500 |
| Voltage | DC 12V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 400Mhz: (340Mhz,360Mhz, 380Mhz, 400Mhz, 420Mhz ,440Mhz, 460Mhz, 480Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) (customization) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) (customization) |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 75*45*20mm |
Use the Analog Video Transmitter for your fpv drone vtx needs. This vtx fpv transmitter is perfect for video fpv drone usage.
This table shows the technical parameters of an Analog Video Transmitter, which can be used as an fpv drone transmitter for drone fpv video. It has 8 channels and uses FM modulation with a frequency range of 300Mhz~900Mhz. The audio carrier wave is 5.5M 6.0M and it has an SMA antenna port. The transmit power is 5W and it has a current of 1.3A. It has a range of 3~6km in open areas and 40~60km from air to ground. The VTX weight is 60g and the video output is 1 Vp-p(FM).
Our Analog Video Transmitter product comes with a comprehensive technical support and services package to ensure the best user experience:
Q: What is the brand name of the Analog Video Transmitter?
A: The brand name of our Analog Video Transmitter is Kimpok Technology, but it can also be purchased as an OEM product.
Q: What is the model number of the Analog Video Transmitter?
A: The model number of our Analog Video Transmitter is KP-A4.
Q: What certifications does the Analog Video Transmitter have?
A: Our Analog Video Transmitter has CE, ROHS, FCC, and SGS certifications.
Q: What is the minimum order quantity for the Analog Video Transmitter?
A: The minimum order quantity for our Analog Video Transmitter is 1 set.
Q: What payment terms are accepted for the Analog Video Transmitter?
A: We accept T/T, PayPal, and Western Union as payment options for our Analog Video Transmitter.
Q: What is the supply ability and delivery time for the Analog Video Transmitter?
A: Our supply ability for the Analog Video Transmitter is 3,000pcs per month. The delivery time is 3-7 days, depending on the quantity and shipping method. The Analog Video Transmitter is packaged in export standard packing.
|
|
