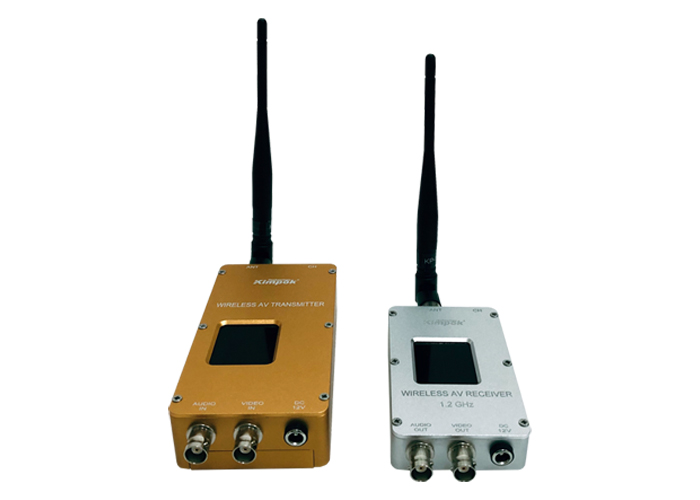

5W Full RF Power Long Range Wireless Video Transmitter 1.2Ghz BNC
Input
Long Range Wireless AV transmitter Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Tx Specification:
Voltage | 12V DC |
Current | 2A |
Frequency | 1.2GHz |
Number of channels | 8 Channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
Transmit Power | 5W |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Distance (Open environment) | 5~10km |
Overall Configuration | Transmitter, AV cable, high gain antenna |
Temperature | -10℃ ~ +50℃ |
Transmitter Weight | 200g |
Receiver Weight | 90g |
Dimensions (L * W * H) | Transmitter:150*65*30mm. Receiver: 100*60*20mm |
Rx specification:
| Frequency | 1.2Ghz |
| Channel | 8 channels |
| Frequency band | 1.080Ghz, 1.120Ghz, 1.160Ghz, 1.200Ghz, 1.240Ghz, 1.280Ghz, 1.320Ghz, 1.360Ghz |
| Working voltage | DC 12V |
| Current consumption | 0.3A |
| Weight | 90g |
| Size | 120*60*20mm |
| Accressories | receiver, antenna, AV cable |
Installing:
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
