| Brand Name : | Kimpok Technology / OEM |
| Model Number : | KP-TS5000 |
| Certification : | CE |
| Price : | Negotiaiton |
| Payment Terms : | T/T, Western Union,PayPal |
| Supply Ability : | 1,000pcs per month |
| Delivery Time : | 3-7 days |
COFDM Wireless UAV Video Data Link up to 100km LOS AES 256 Encryption
UAV Video Transmitter Introduction:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in resolution 1920*1080P, short latency.

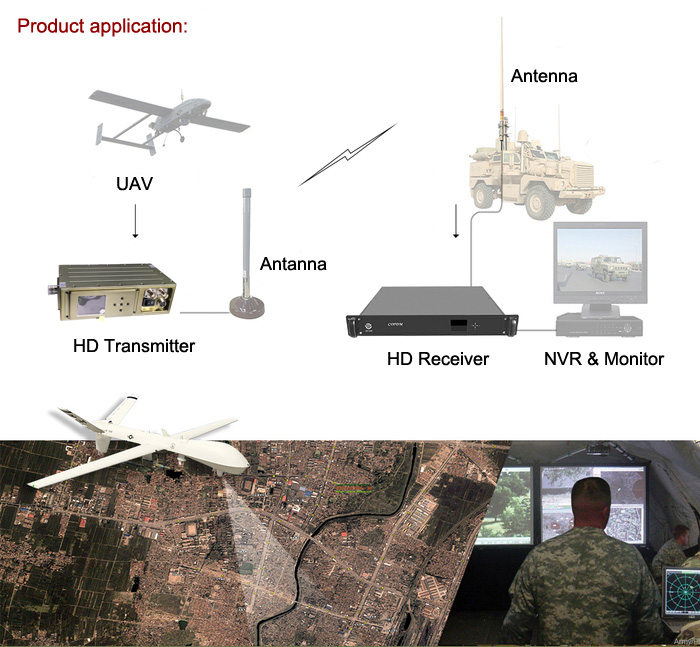

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.
Transmitter Parameters:
| Frequency | 300-900MHz(adjustable),1.2GHz/2.4GHz/5.8GHz(customized) |
| RF output Power | 2-5Watt(adjustable) |
| Voltage | DC12V |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
| Transfer rate | 2/4/6/8Mbps(optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Video Input | 1 line PAL/NTSC analog video |
| Audio Input | Analog stereo left and right channels |
| Video Compression | H.264/MEPG-4 |
| Data encryption | AES 265 bit / ALLTECH Basic scrambling |
| Flatness | ≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K,8K |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| RF Interface | N(F) |
| Video Format | PAL/NTSC(self-adaption) |
| AV Interface | HD-MI/SDI; CVBS |
| Work environment | -30~70°C |
| NLOS Distance | 1-3km on ground with obstacles |
| LOS Distance | 100km Max (on helicopter); 6-10km LOS; 3km NLOS on groud |
| Size | 180*100*60mm |
| Weight | 1444g(net weight) |
Standard one Channel Receiver:
Optional 1 Channel Portable Receiver:
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a
year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an
experienced manufacturer in wireless microwave transmission area
since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solutions to fit your requirements.
|
|
