| Brand Name : | Kimpok Technology / OEM |
| Model Number : | KP-LAM300-100W |
| Certification : | CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, PayPal |
| Supply Ability : | 1000pcs/month |
| Delivery Time : | 7-15 working days |

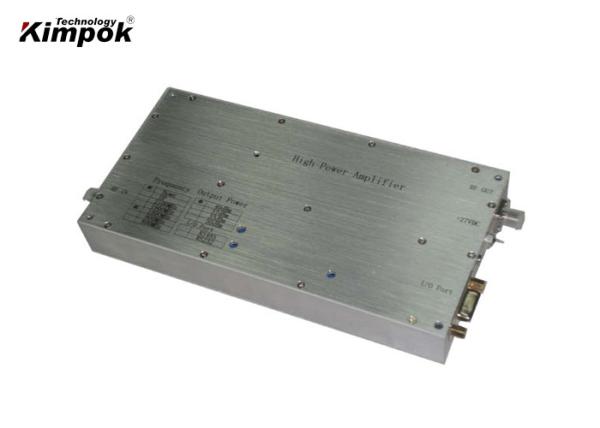

100 Watt RF Linear Power Amplifier 300MHz Frequency 27V DC Working Voltage
Specification:
| No. | Item | Requirements |
| 1 | Frequency Range | 330-340MHz/ 340-350MHz Or 1805-1880MHz Or 2110-2170MHz |
| 2 | Gain | 50dBi |
| 3 | Max RF Output Power | 50dBm /100W |
| 4 | Gain Adjust Range | 31dB |
| 5 | Input Power | 3-8dBm |
| 6 | In-Band Ripple | 1dB |
| 7 | Input/Output VSWR | ≤1.3 |
| 8 | Working Voltage | 27VDC(27V-28V) |
| 9 | Working Current | 10A |
| 10 | RF Input/ Output Ports | SMA-Female |
| 11 | Power Supply Interface | Pull-core Capacitance |
12 | To Monitoring function (DB15,Female) | PIN1: 1dB Attenuation |
| PIN2: 2dB Attenuation | ||
| PIN3:4dB Attenuation | ||
| PIN4: 8dB Attenuation | ||
| PIN5:16dB Attenuation | ||
| PIN7: V/L, VSWR(reflected RF Power, Max voltage,4V; 0.05V/1dBm) | ||
| PIN10:P/L(Output RF Power; Max voltage,4V; 0.05V/1dBm) | ||
| PIN11: LE :Enable, High Level: OFF; Low Level: ON | ||
| PIN14: T/LTemperature:0.01V/1 Celsius ,0.3V for 30 Celsius | ||
| PIN15: GND | ||
PIN6:NC, PIN8: NC, PIN9: NC, PIN12: NC, PIN13: NC | ||
| 13 | Monitoring function (DB9,Female,RS485) (Optional) | PIN1,PIN2: RS485A PIN3,PIN4: RS485B PIN5: GND Data Protocol: China Mobile Standard |
|
|
