340MHz Wifi and 3G / 4G COFDM IP Mesh Full Duplex TDD Wireless Transceiver

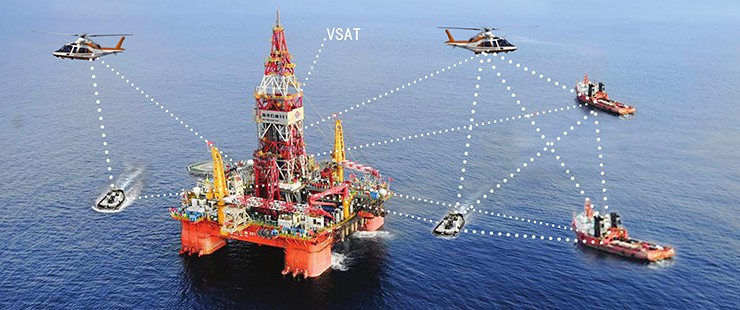

Based on the growing demand of the proprietary communications market,our 1st Mesh product model KP-MESH340 can able to deliver video,voice,and data signals over IP networks in a complex environment with a wide coverage,strong diffraction ability,high transfer rate and self-defined security encryption.The Mesh is suitable not only for PTP communication,but also centerless multi-hop ad hoc network.

Each mesh grod can access up to 16 nodes.According to the work environment and the number of nodes, KP-MESH340 throughput up to 11Mbps, transmit distance can be extended through multi-hop. As Mesh self-organizing / self-healing features make it very suitable for motion surveillance with high quality image and emergency communication.

Main feature:

340MHz wifi and 3G 4G full duplex cofdm wireless ip mesh

• Non-line-of- sight communication
• Self-organizing network
• Self-encrypting security algorithm
• Frequency can be customized at rang of 100~1000MHz
• High transmission rate: peak 11Mbps @ 10MHz
• Ultra-strong receiving sensitivity: -92dbm @ 10MHz

Application:

Military grade machine design, lightweight, for portable. Shell-case of metal material, military level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation.

We design and manufacture all COFDM products and the core technology and intellectual property rights in our own hands, so that some sensitive customers and projects can be assured of purchasing from us. And we accept of flexible customization based on user needs.

Product is widely used in public security, armed police, fire, disaster relief and other emergency communications systems; UAV aerial, electricity, water, waterway, border and other monitoring.

Specification:

Equipments accessories:

Ultrashort wave antenna		Battery	Adapter	cable
Accessories
specifications	Bandwidth:10MHz	Interface:aviation plug	Input voltage: 220V	Power input/output,Ethernet,AV composite cable
	gain＞5dbi	Output voltage: DC14.4V	Input current: 10A	Audio,serial port*2,USB cable
	SWR≤1.5	Output current:5A max	Output voltage:12V
	Impedance:50Ω	Capacity:10Ah	Output current:4A max
	Polarization: Vertical	Endurance: 4hrs
	Max power 20W
	Length:110cm (foldable)
Remark:	Above antenna is standard, you can also select other high gain antenna.

Kimpok Technology is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Kimpok Technology has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Kimpok Technology continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.

Testing Equipments:
