Portable Bi-directional Ethernet Radio Self-managing Network IP Mesh for UAV / Helicopter

Bi-directional IP Mesh:

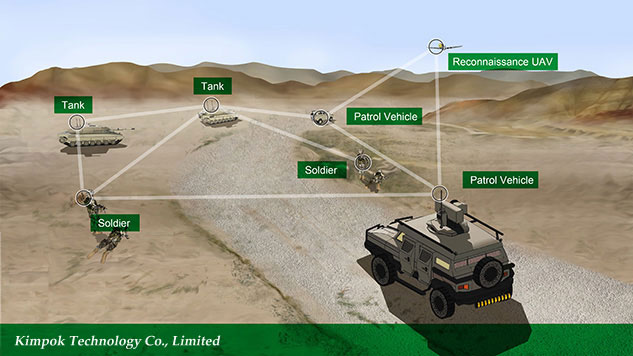

Model KP-MESH340 wireless mesh is combined with mobile MESH, IP communication unit that delivers direct wireless mobile communication including HD video, data and VoIP without any extra infrastructure. KP-MESH340 wireless mesh is a fully connected "Self- managing" and "Self-healing" network where all units are connected to each other and could act as a relay to other units in the network. This assures connectivity even in extremely harsh conditions. With each unit providing redundancy to other units, a failure in one unit will not affect the operation of other units in the network.

KP-MESH340 wireless mesh is the military-level design, and has advantages of low power consumption, lightweight, battery operated unit delivering the highest form-to-performance ratio. It’s ideal for hand carry missions, robotics and mobile vehicles whether aerial, ground and sea.

Features of mobile wireless mesh communication:

* NLOS communication

* Centerless ad-hoc MESH networks

* Self-encrypted or AES 128bits

* Optional frequency: 100MHz~1000MHz

* High transfer rate: up to 11Mbps@10MHz

* Strong receiving sensitivity: -92dBm@10MHz

* Non-line-of-sight

* Instant ad-hoc networks

* Robust reliable wireless IP networks

* Operates between fast moving vehicles

* Rapidly deployable wireless surveillance system

Equipments accessories:

Ultrashort wave antenna		Battery	Adapter	cable
Accessories
specifications	Bandwidth:10MHz	Interface:aviation plug	Input voltage: 220V	Power input/output,Ethernet,AV composite cable
	gain＞5dbi	Output voltage: DC14.4V	Input current: 10A	Audio,serial port*2,USB cable
	SWR≤1.5	Output current:5A max	Output voltage:12V
	Impedance:50Ω	Capacity:10Ah	Output current:4A max
	Polarization: Vertical	Endurance: 4hrs
	Max power 20W
	Length:110cm (foldable)
Remark:	Above antenna is standard, you can also select other high gain antenna.

Specifications:

Kimpok Technology is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Kimpok Technology has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Kimpok Technology continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.

Testing Equipments:
