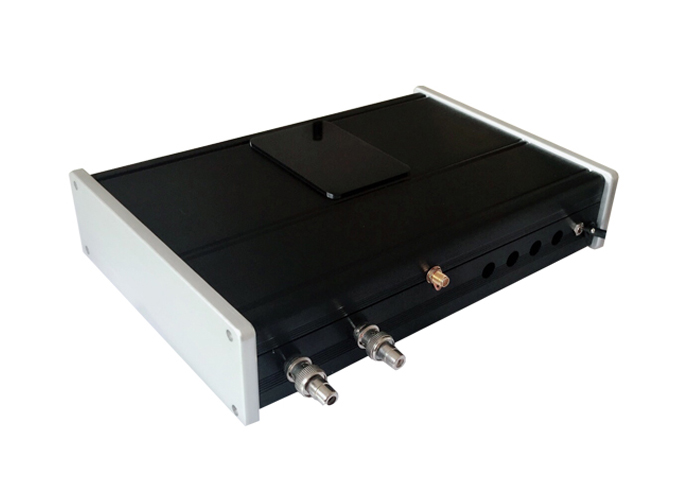

NLOS Wireless Analog Video Transmitter with 10W RF Power for Long
Distance Video Audio Transmission
Description:
KP-A10 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 10~30KM or so, if the raising of the
high gain directional antenna, increased to 60KM away. And
transmitter technology is superb and the special metal is more
conducive to heat, more suitable for long hours of work. Signal

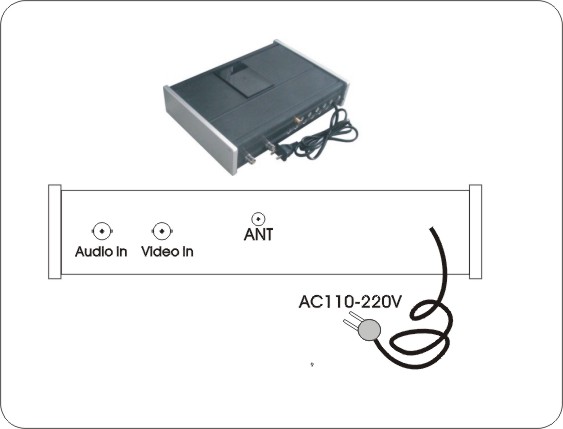

input with common AV interface, it can easily work with camera,
VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
Voltage | AC 220V |
Current | 600mA |
Frequency | 0.9Ghz/1.2Ghz/1.3Ghz |
Number of channels | 4CHs |
Transmit Power | 10W |
Video Output | 1 Vp-p(FM) |
Audio Output | 1 Vp-p(FM) |
Audio Carrier Ware | 5.5M 6.0M |
Distance (Open environment) | 10~30KM |
Overall Configuration | Transmitter, receiver, AV cable, power supply, antenna |
Temperature | -10℃ ~ +50℃ |
Transmitter Weight | 3168g |
Receiver Weight | 120g |
Dimensions (L * W * H) | Transmitter:305*104*97mm. Receiver:116*80*21mm |
Box size (L * W * H) | 245*160*65mm |
Our Service
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a
year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an
experienced manufacturer in wireless microwave transmission area
since 1998, we are the source.
|
|
