Mini HD COFDM Video Transmitter 1080P Wireless Body-worn Video Transmitter with Data
Description:
KP-HDT1W is a micro new customized HD COFDM video transmitter, specially designed for UAV,UGV and body-worn us. It is a rugged, miniature, high definition digital wireless video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full hd resolution with HDMI or CVBS input and data serial port(RS485/RS232/TTL) for two-way data communication.
The increased compression and efficiency of the MPEG-4 / H.264 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.
Features:
* Small size, lighter and low power consumption
* Full hd video resolution,H.264 compression
* COFDM modulation
* inbuilt with HDMI and data serial port
* Heat dissipation with aluminum case;
* Great security by AES user defined encryption
* Ideal for UAV/UGV and hidden mission use
* Low delay time;
Transmitter Specification:
| Voltage | DC12V |
| Power supply | DC12V/600mA |
| AV input | HDMI: support HD1080P/1080I,720P,576,480; |
| Data serial port | RS485RS232/TTL ,one-way communication |
| Frequency | 300-1500MHz (optional) |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| RF power | 1Watt(30dBm) |
| Encryption | AES -user defined password |
| Modulation | COFDM,2K,QPSK |
| Constellation | QPSK,16QAM,64QAM |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| FEC | 1/2,2/3,3/4,7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video Compression | H.264/MPEG-4 |
| Resolution | 720P ,1080i/1080P@60fps |
| Parameter control method | User can Set up the related parameters by the control buttons |
| Built-in small LCD | display parameters,but will be shut up in 3 seconds after on. |
| Power switch | ON/OFF simple operation |
| CNR(weighting) | ≥58 dB |
| Sloping field SNR | ≥50 dB |
| RF Interface | SMA |
| Video formats | PAL/NTSC(self-adaption) |
| Low latency | 200ms |
| Working temperature | -20℃～75℃ |
| Dimension | 100*60*16mm |
| Weight | 133g(without battery) |
Receiver specificatations:
| Frequency | 300-900MHz(option) |
| Bandwidth | 2/2.5/4/8MHz (adustable) |
| RF Level Input | -92dBm~-20dBm / -105dBm~-20dBm |
| RF Impedance | 50Ω |
| RF Interface | N female |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K,8K |
| Video Decoding | ISO/IEC13818-2 MPEG-2MP@ML |
| Aspect Ratio | 4:3, 16:9 |
| Resolution | 1080P; 720P |
| Audio Output | Analog stereo left and right channels |
| Lines of horizontal | 625 or 525 Line |
| Decryption | AES256 bit / ALLTECH Basic scrambling |
| Working Voltage | AC220V / DC12V |
| Temperature | -30~70° |
| Dimension | 430*310*65mm (1U Aluminium alloy box) |
| Weight | 3.5 kg |

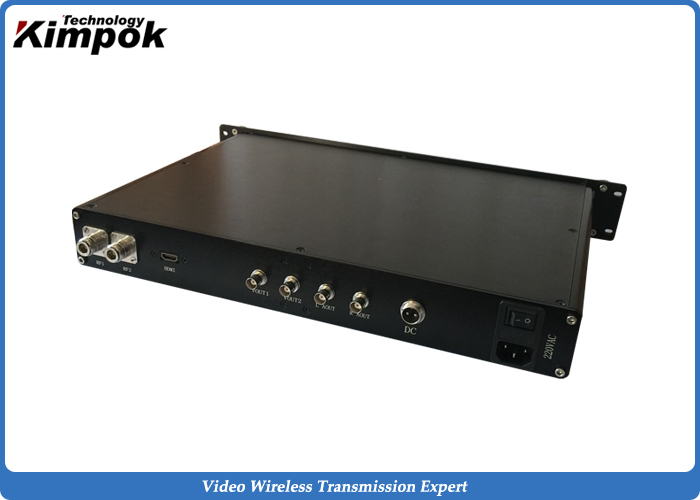

Receiver picture:
Typical application:
UAV shooting, Police/military secret application
Tactical system, hidden mission
UGV, Surveillance&public safety
|
|
