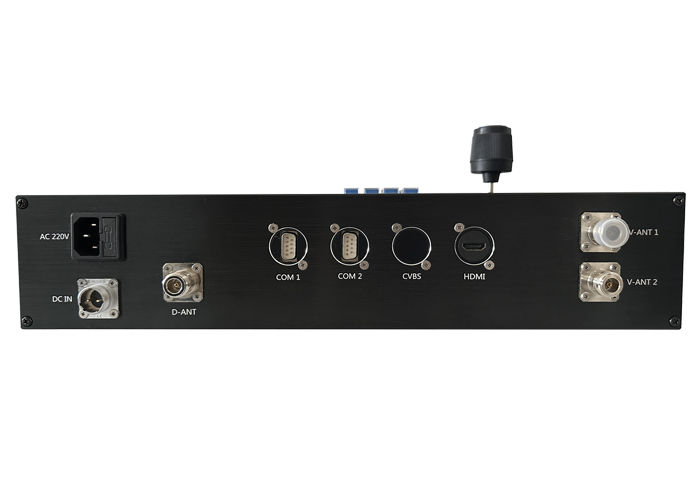

HD COFDM Wireless Video Receiver 300MHz-4400MHz with Controller

Product Features:

1. Broadcasting multi-function HD wireless receiver;
2. Supported AV + data simultaneously;
3. AES 256bit encryption;
4. Adjustable and customizable frequency.
5. GPS function is available.
6. PTZ camera control.

Specifications:

1. Frequency/Video: 300~900MHz (adjustable), other frequencies customized
2. Frequency/Data: 200-868MHz (option)
3. Receive sensitivity: -105dBm
4. RF Interface: N
5. Power supply: DC12-14V
6. Modulation: COFDM, 2K
7. AV Interface: HDMI; CVBS
8. FEC: 1 / 2
9. Guard Interval: 1 / 32
10. Video Output: 1 line PAL / NTSC analog video
11. Resolution: 1980*1080P; 1280*720P
12. Lines of horizontal: 625 or 525 Line
13. Audio Output: Analog stereo left and right channels
14. Data Encryption: AES 256 Bits
15. Data port: RS232 @1200-9600pbs(adjustable)
16. Work environment: -30°C ~ 70°C
17. Weight: 1.5KG
18. Size: 430*310*65mm

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

• One-stop ODM/OEM solution;
• 24-hour technical support;
• Lifelong maintenance (Replacement parts will be charged after a year);
• Provide professional system design and construction;
• You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.

Kimpok Technology is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Kimpok Technology has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Kimpok Technology continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.
